Angle Steel Process Machine

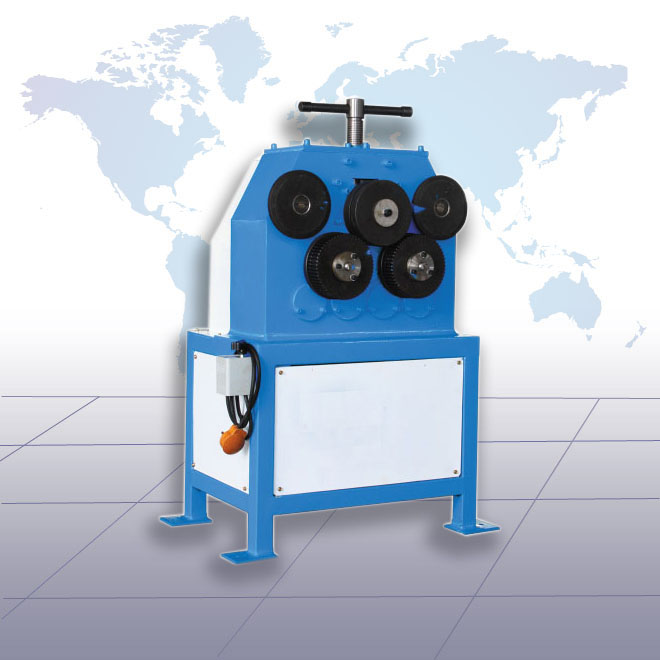

Angle Steel Rolling Round machine

  • Model No.: JY-40
  • Product Size: 700*500*950
  • Net Weight: 370KG
  • Product Power: 1.5KW
  • Product Material: Galvanized sheet SS

Perfectly complete pre-bending, rolled-up, roll calibrate. Working principle: two down rollers as main driving roller, or all three rollers as main driving roller, with upper roller fixed and two down rollers do up-and-town movement around one fixed center. Well hydraulic control, displacement liquid-crystal display with accuracy+_0.1mm.The two touch steel stick permit the good finishing quality of asymmetric plate section bending.
Rollers are changeable according to requirements;
Can roll angel iron, band iron, round pipe, channels and square tube etc.
The rollers’ clearance are adjustable while the three rollers working which will save material.

Model JY-40 JY-50
Yield limit ≦245 ≦245
Min. Beading dia. (mm) 200-400 300-400
Angle steel function <40*4 <50*5
L*W*H (mm) 700*500*950 800*550*1100
Weight (kg) 370 400
Main motor (kw) 1.5 2.2
