Other Sheet Metal Machine

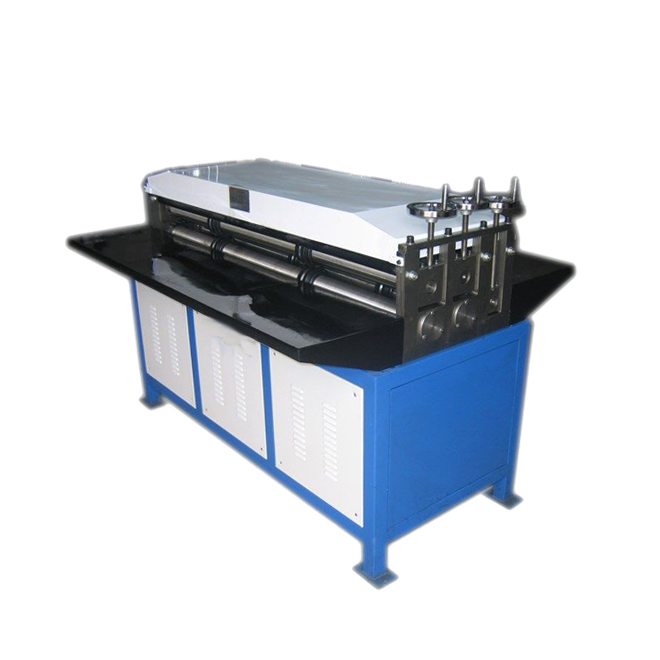

Five veins and seven veins grooving machine

  • Model No.:
  • Product Size:
  • Net Weight:
  • Product Power:
  • Product Material:

This kind bending grooving machine is the most widely-used and traditional machinery applied in the manufacture of ventilation pipes. It can greatly ensure the precision and accuracy during the working process. This kind grooving machine has reasonable weight, convenient transportation and is suitable for different working environment. All rollers and bearings adopt excellent steel processed by advanced heat treatment technology (quenching), which enhances wear-resistance for the machine.

Features
1, Panel reinforcement special equipment
2, Maximum thickness: 2000mm
3, Maximum width: 2500mm

Specifications

Name Model Sheet thickness (mm) Sheet width (mm) Power (kw) Weight (kg)
5 Thread B-1.2*1300 1.2 1300 1.5 350
B-1.0*2000 1.0 2000 2.2 480
B-1.2*2000 1.2 2000 2.2 600
7 Thread B-2.0*2500 2.0 2500 3 1300
