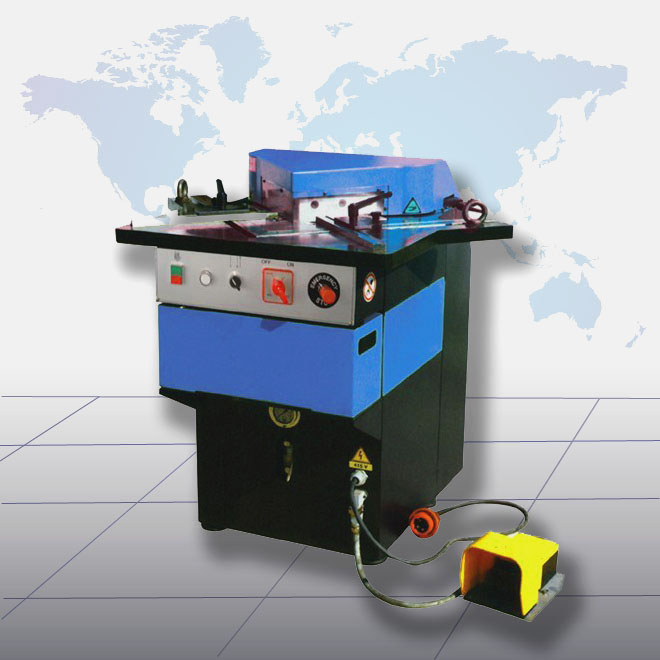

hydraulic notching machine

Model No.： QC28Y-4*200
Product Size： 1200*950*1450
Net Weight： 1350
Product Power：
Product Material： Galvanized sheet SS

This notching machine has steel welded structure which confirms enough stiffness and physical strength. Adopt hydraulic drive. Can adjust the angle freely between 40°-130° and can cut 200*4 rectangular work piece. It’s suitable for various kinds of notching processing.

Features
1) Foot Switch control
2) Slug chute
3) Two protractor gauges
4) T-Slotted table with recessed measuring scales
5) Blade suitable for mild or stainless steel
6) Material hold downs
7) Easy maintenance

Specification

Model	Min. Notching thickness (mm)		Max. Notching thickness (mm)		Min. Notching adjustable angle (°)	Max. Notching adjustable angle (°)	Weight (kg)	Dimension (mm)
Model	Carbon steel	Stainless steel	Carbon steel	Stainless steel	Min. Notching adjustable angle (°)	Max. Notching adjustable angle (°)	Weight (kg)	Dimension (mm)
QC28Y-4*200	0.5	0.5	4	2	45	135	1350	12009501450
QC28YB-4*200	/	/	4	2	90	90	980	10008001300
