Rectangular Duct Making Machine

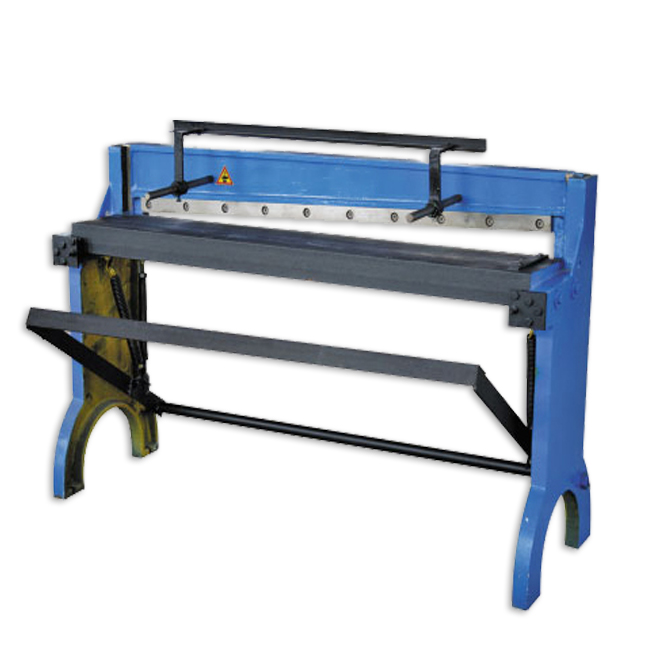

foot pedal shears

  • Model No.: Q11-1*100
  • Product Size: 1500*1100*1140
  • Net Weight: 360KG
  • Product Power: 0
  • Product Material: Galvanized sheet

Q11 mechanical shearing machine has simple structure, easy operation, elegant design, attractive appearance and low energy consumption. Mechanical shears Uses resist key structural form and open gear clutch transmission, and more advanced Electric operation (foot switch, manual switch) with low noise operation and easy maintenance. It is widely used in metallurgy, light industry, machinery, hardware, electrical, electronics, automotive repair, metal fabrication and other sheet metal processing industry.

Features
1 This machine is used for the shear sheet metal in line, metal materials should be tensile strength of less than 450 N/mm2, non-metallic material including rubber, plastics,when cut hot plate temperature should below 50 °C, The machine can make only intermittent shear in full load, if tensile strength is higher , shear thickness should be reduced.
2 The machine is applicable to uncoiling, leveling, shearing,workshop of production line for plate processing
3 The machine base is steel- welding , the structure is compact, good rigidity.
4 Track of blade movement is precision casting copper,less friction
5 Upper guide can adjust until achieve a good shear section, below blade can adjust via welding screw make the cutting mouth smooth
6 Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal surface.
7 The machine iuse completely independent closed gear box transmission system, move directly connection with main axil, compact structure, gear have good lubrication, low noise and long life.
8 The machine equipped with pneumatic clutch device, high friction, long service life, clutch speed is high so that improve the shearing speed

Specifications
Manual Type

Model Q11-1*1000 Q11-1*1300 Q11-1*2000
Max. Cutting thickness (mm)                                                                           Mild steel 0.5-1.0 0.5-1.0 0.5-0.8
Stainless steel 0.6 0.5 0.5
Cutting length (mm)                                       1000 1300 2000
Dimension (mm) 1500*1100*1140 1900*1000*1140 2240*1100*1140
Weight (kg) 180 260 560
Electric Type
Model Q11-2*2000 Q11-3*1300 Q11-4*2500
Max. Cutting thickness (mm)                                                                           Mild steel 0.5-4 0.5-3 0.5-4
Stainless steel 0.5-2 0.5-1.5 0.5-2
Cutting length (mm)                                       2000 1300 2500
Dimension (mm) 2800*1260*1300 2100*1260*1300          3500*1500*1450
Weight (kg) 1350 1000 2075
Motor power (kw) 3 2.2 5.5
