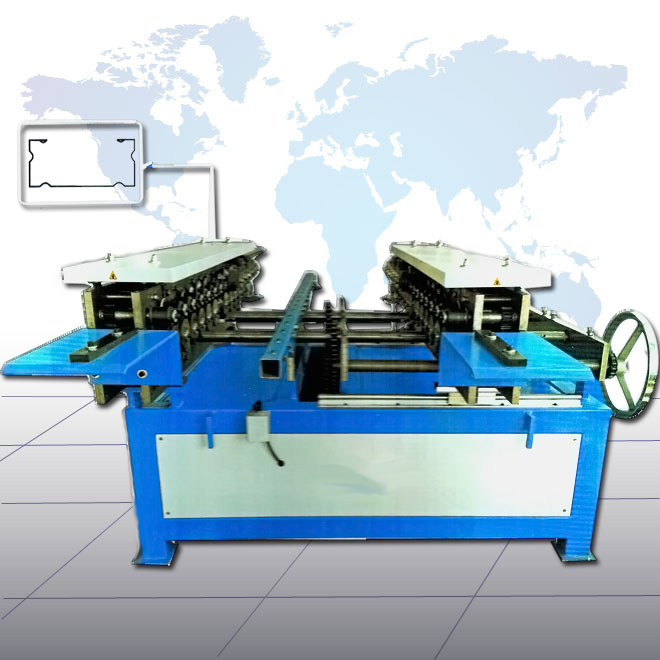

Double-linkage TDF Flange machine

Double linkage flange machine can finish the flange forming one time at the two ends of the air duct. The lead rail at the mobile terminal adopts high precision, high stiffness, high reliability and high load capacity liner guide rail which makes the movement easily and saves labor. It can be used alone or coordinate with large air duct production line. To compare with a single machine, it has high process efficiency, beautiful and stable forming shape, which will form strong process ability. This equipment will be the first choice for companies that have large capacity of processing, limited time and less workers. The plate metal can not only be shaped bilateral simultaneous but also unilateral forming. It’s suitable for processing 0.5-1.5mm plate thickness. The width of the work piece is adjustable and the adjusting range is 600-1500mm. This equipment is suitable for specialization production.

Features

1. Bilateral simultaneous flange forming, process thickness is between 0.5-1.5mm, work piece’s width is adjustable.
2. Double screw locking.
3. Process speed 14m/min.

Specifications

Model	Power (kw)	Plate thickness (mm)	Shape	Flange height (mm)	Weight (kg)	Appearance (mm)
2-T-12	4	0.5-1.2		35+-0.5	2600	2800x2200x1200
2-T-15	5.5	0.8-1.		35+-0.5	2800	2800x2200x1200
