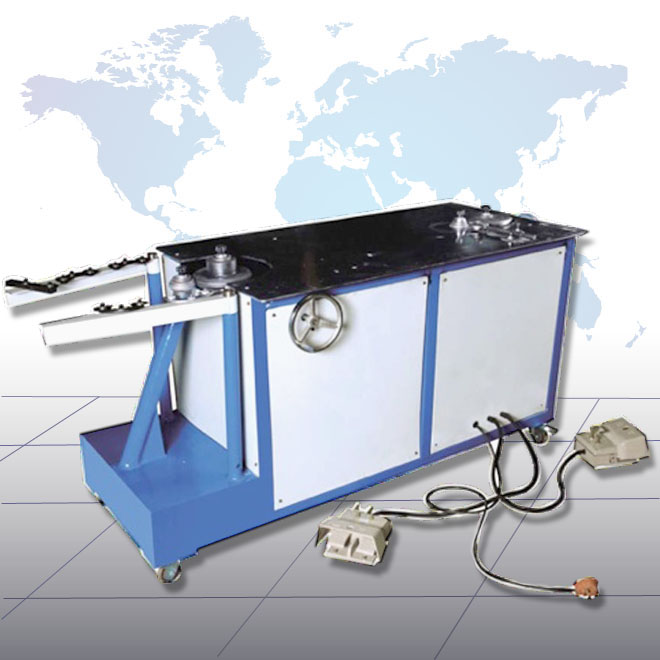

Round Air Duct Machine

spiral duct elbow forming gore locker making machine

  • Model No.: TRC-1000T
  • Product Size: 2230x900x1050
  • Net Weight: 450KG
  • Product Power: 1.5KW*2
  • Product Material: Galvanized sheet

Elbow Making Machine also known as circular tube elbow lock machine. It’s the special lock forming equipment of processing thin sheet metal circular tube and pipe elbow bend (shrimp). Pipe diameter ranges from 100-1000mm. The minimum diameter to process is 100mm. It has not only good sealing but also has beautiful forming appearance. It’s mainly used to produce the elbow tube on the air conditional HVAC.

Features
1. It has advantages of reasonable structure, stable performance, high efficiency and easy operation.
2. The bone type that being formed has good flatness, accurate size and angle; The occluded air duct has good sealing, sturdy and durable features etc.

Specifications

Tenroy Model TRC-1000T
Max. plate thickness (mm) 1.2
Material Cold plate, galvanized plate
Diameter (mm) 100-1000
Production speed (m/min) 8
Power (kw) 1.5x2
Net weight (kg) 450
Size (mm) 2230x900x1050
