Round Air Duct Machine

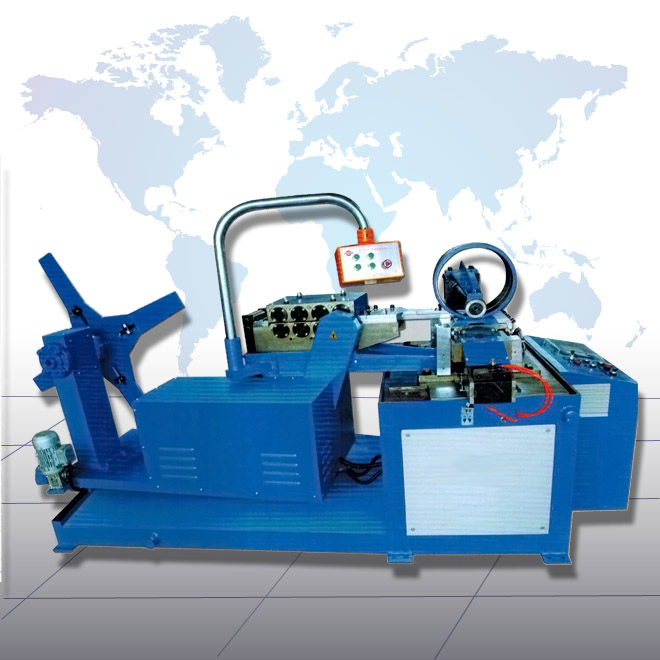

Tube model spiral duct forming machine

Model No.： LXA-100/1250A
Product Size： 3200x1900x1800
Net Weight： 1550kG
Product Power： 5.5KW+4KW
Product Material： Galvanized sheet

1. To process each diameter tube, the spiral duct machine must choose a corresponding size of tube mold. It owns the features of the pipe diameter switching and adjusting easily and quickly, the stable tube size and good sealing and forming effect. It adopts high speed synchronous automatic cutting system or roll cutting device according to the required length.
2. To process each diameter tube, the spiral duct machine must choose a corresponding size of tube mold. The tube mould is steel mold which is more solid , durable and stable forming. It uses high-speed circular saw automatic cutting system.
Specifications

Model Spec.	Plate diameter (mm)	Plate thickness (mm)	Steel width (mm)	Feeding speed (m/min)	Motor power (kw)	Cutting power (kw)	Size (mm)	Weight (kg)
LXA-100/1250A	100-1250	0.5-1.2	124	0-26	5.5	4	3200x1900x1800	1550
LXA-100/1600A	100-1600	0.5-1.2	124	0-26	5.5	4	3300x1900x1800	1650
