Duct Manufacturing Auto Line IV

Introduction

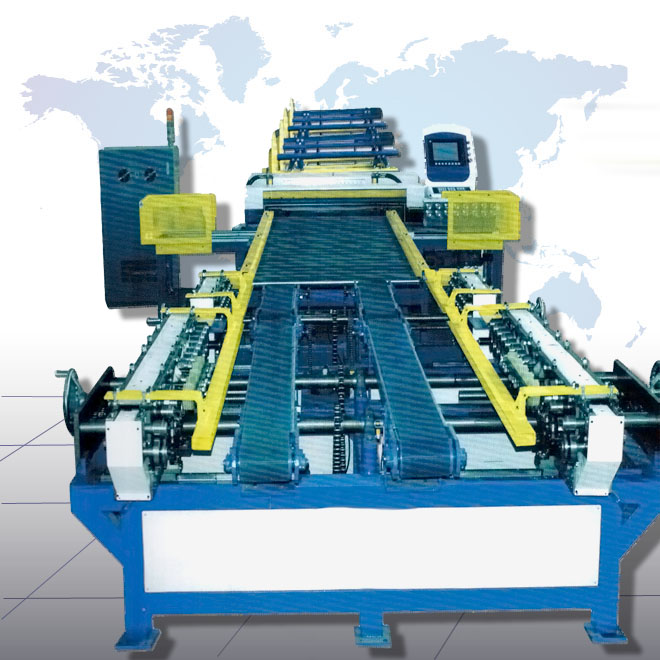

Line IV is linear structure composed by feeding rack, leveling beading, hydraulic punch sharp and square opening, hydraulic shears, displacement type joint angle lock forming machine, feeding platform to position the manipulator, double linkage flange machine (or optional single bone angle iron flange) full automatic computer control system. Blunt notch and punch square, shear plate adopts full hydraulic pressure system.

Features
1. Line IV is a cost-effective equipment wind pipe, covers and area of relatively small.
2. To buy a hydraulic bending machine additional will be very suitable for TDF flange, TDC plug-in flanges, flange angle iron production.
3. The maximum feed speed is 16m/min, the length tolerance is +-0.5mm.
4. The computer control system adopts closed-loop feedback to guarantee stable precision.


Basic equipments

1. Electric feeding rack 2pcs (3000*1900*950*2)
2. Leveling, beading, punch sharp and square opening die, shearing machine
3. Displacement type joint angle reel bone machine
4. An electric feeding plate form
5. Double linkage flange machine
6. Double linkage single bone flange machine
7. Computer control system and a set of software production


Specifications


Model	Plate thickness (mm)	Plate width (mm)	Max-working speed (m/min)	Coiler weight (kg)	Weight (kg)	Dimension (mm)
SDJL-IV	0.5-1.2	1300	16	6000x2	7500	12000x3500x1300
		1600			8000	12000x3800x1300


Note: 1. Weight and size not including the two feeding rack;
     2. Customers can order the line with different sheet specifications, sheet width and coiler weight.
